How to create a button for my own SEM configuration using Equivital Manager

You can do this as follows.

1. Save the configuration that you want as a file using the icon at the top right of the screen
2. Locate the file and move it to the Equivital Manager\Sample Configurations program data folder. This will usually be C:\ProgramData\Equivital\Equivital Manager\Sample Configurations but may have a different path on your PC.
3. Rename the file to something memorable.
4. Restart Manager

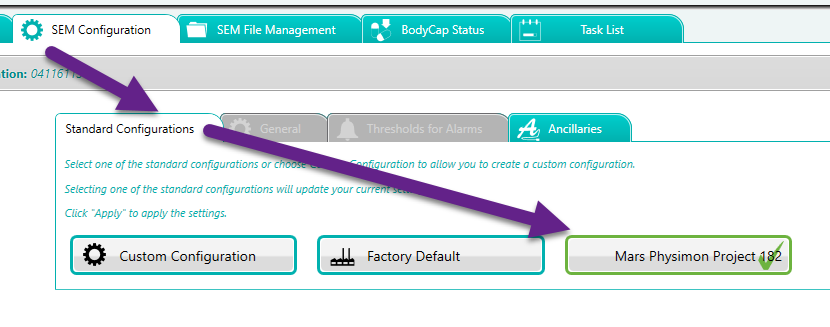

5. The file will appear on the first tab of the configuration options
